Sharpening of woodworking tools

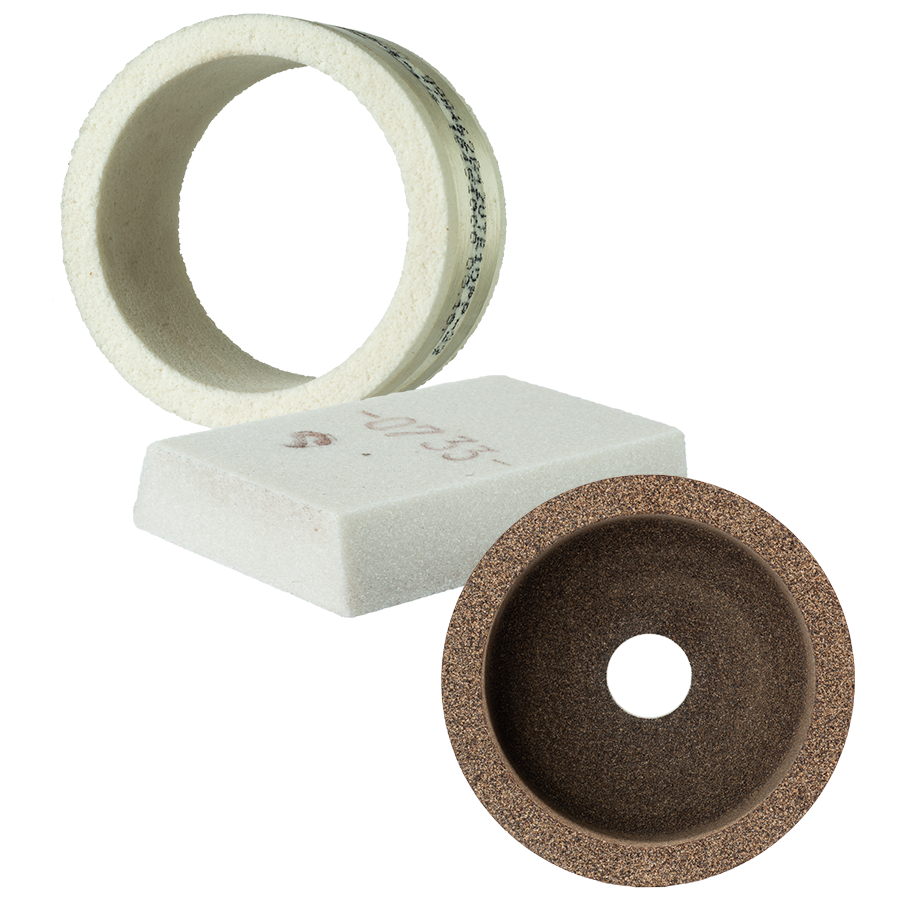

VENEER KNIVES SHARPENING

This is a grinding operation designed to achieve the required blade geometry. ANDRE offers a proven range of grinding wheels for this operation. Only properly selected grinding wheels will ensure the required sharpness and long life of the blade.

| TYPE 2 | TYPE 3109 | TYPE 6

2 - D x T - W

3109 - B/A x C x L

6 - D x T x H - W...E...

*Examples of implemented abrasive tools in industry []**
Type	Dimensions [mm]	Characteristics	Speed [m/s]
2	200x90-W20	59A60G12VTE10P	20
3109	49/44x22x80	59A46G12VTE10P	-
6	75x90x110-W20E15	99A36JB	35

[*] Ask the Sales Department about the full offer and available characteristics.

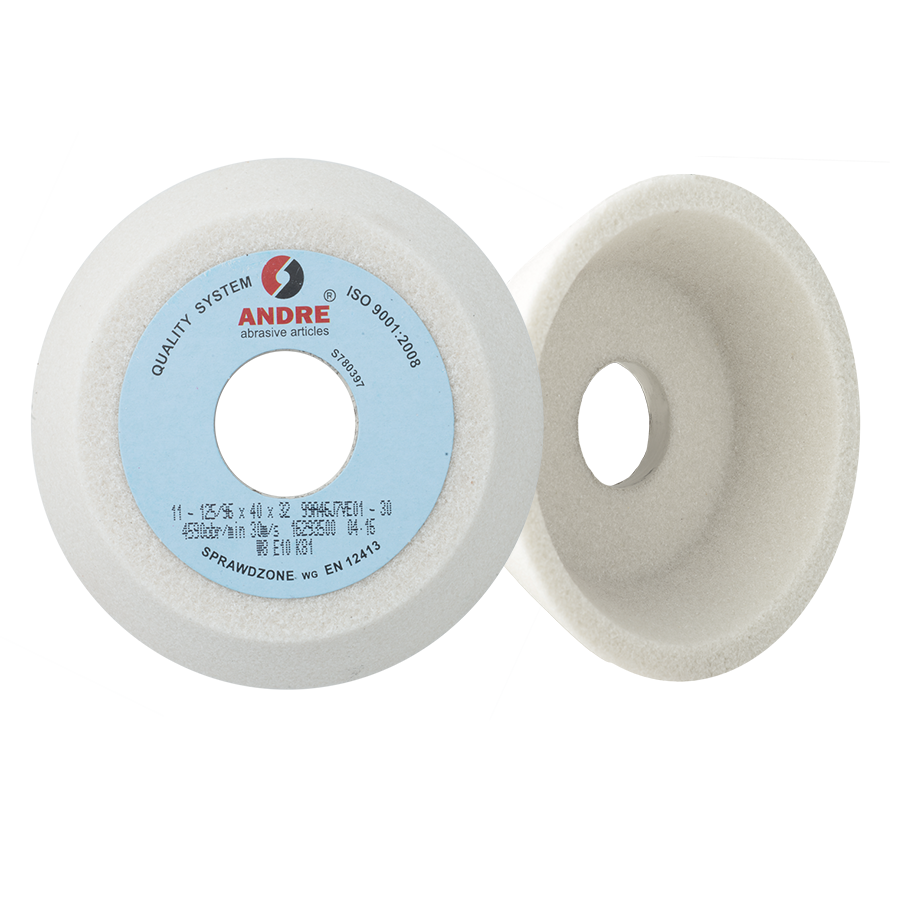

SHARPENING OF OTHER WOODWORKING TOOLS (PLANING KNIVES, DRILLS, CUTTERS)

Woodworking tools are not just circular, band or chain saws - they are also drills, cutters, and planing knives. Each of these tools, in order to achieve a smooth surface without burns, must be sharp. ANDRE offers a proven range of grinding wheels for sharpening these tools. Only properly selected grinding wheels will provide the required sharpness and long service life.

| TYPE 1 | TYPE 2 | TYPE 5 | TYPE 6 | TYPE 11

1 - D x T x H

2 - D x T - W

5 - D x T x H - P...F...

6 - D x T x H - W...E...

11 - D/J x T x H - W...E...K...

*Examples of implemented abrasive tools in industry []**
Type	Dimensions [mm]	Characteristics	Speed [m/s]
1	150x20x20	CRA80K7VE01	35
2	200x100-W20	99A462G8VE01Z	40
2	300x120-W25	99A36K6B	40
5	150x40x12,7-P80F20	99A100J7VE01	35
6	150x80x32-W13E16	99A46K7VE01	35
11	150/114x50x32 - W10E13K96	99A60K7VE01	33

[*] Ask the Sales Department about the full offer and available characteristics.

| TYPE 1A1 | TYPE 6A2 | TYPE 11A2

1A1 - D x T x X x H

6A2 - D x T-X x W x X x H

11A2 - D x T-X x W x X x H

*Examples of implemented abrasive tools in industry []**
Type	Dimensions [mm]	Characteristics
1A1	150x20x4x32	D126C75LBG2
1A1	150x15x4x20	B126V180LBG2
6A2	100x23x6x4x20	D126C75LBL2
6A2	125x23x10x4x20	B126V180LBL2
11A2	100x40x6x4x20	D107C75LBL2

[*] Ask the Sales Department about the full offer and available characteristics.

Since the beginning of its activity, ANDRE company has been focusing on high quality of its products. At ANDRE, every effort is made to ensure that products meet customers' individual needs and satisfy their highest expectations even in the most difficult grinding operations.

Abrasive tools by ANDRE ABRASIVE ARTICLES are safe.

ANDRE gradually improves its technological process to offer abrasive tools with increasingly better usability and a high safety factor in accordance with the applicable standards. Membership in organizations of leading abrasive tool manufacturers and regular certification fully confirm that.
