TYPE 3701

RING WHEELS WITH THREADED INSERTS, RELIEVED ON ONE SIDE, WITH INCISIONS

Ring wheels TYPE 3701 are intended for surface grinding on metal, concrete, terrazzo and ceramics. They work with the face surface. They have threaded inserts on their non-working face for clamping on the grinder.

Used for grinding and sharpening bookbinding knives, circular saw tops, flooring, industrial floors and terraces. They are also used, for example, for machining components in the automotive industry.

ANDRE TYPE 3701 grinding wheels belonging to the family of resin bonded abrasive tools are manufactured mainly on the basis of white aluminium oxide (99A) and black silicon carbide (98C). For special applications, ANDRE also offers other combinations of abrasive grains with excellent performance characteristics.

W < 0,17 D

3701 - D x T - W... - no. pic.

Examples of labeling:
3701 - 900x75-W150-99A36K12BPL-32-PP/37/683

Download

DIMENSION TABLE

Parameters of the offered grinding wheels of the presented type

TYPE 3701

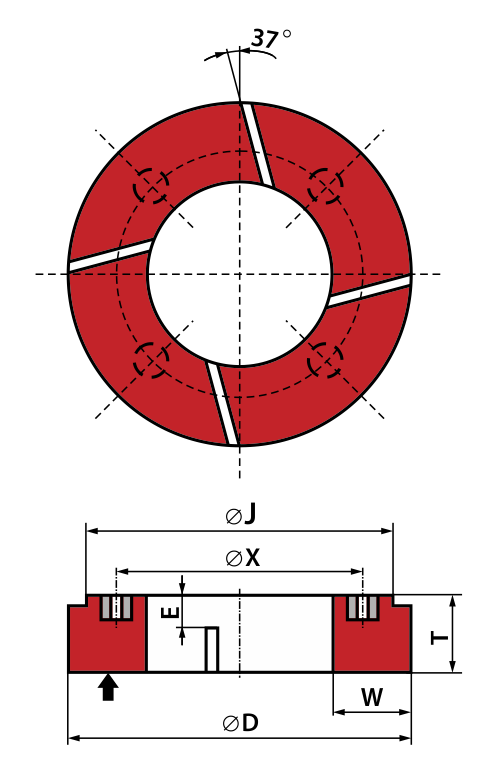

Dimensions [mm]									Angle scale and number of thread inserts	Number of incisions n	No. pic.
D	J	T	E	W	U	X	Width of incisions L	Height of threaded insert
300	269	62	24	50	55	235	10	12	90° 4 x M10	4	PP/37/071
			38								PP/37/228
			52								PP/37/167

*) Other parameters (dimensions, profiles) available according to individual arrangements.
Note: The centering system should be defined, i.e. relative to the outer diameter, relative to the diameter of the hole, which implies dimensional tolerances.

The presented abrasive tools ANDRE ABRASIVE ARTICLES have been manufactured based on knowledge and long-term experience of cooperation with customers.

Since the beginning of its activity, ANDRE company has been focusing on high quality of its products. At ANDRE, every effort is made to ensure that products meet customers' individual needs and satisfy their highest expectations even in the most difficult grinding operations.

Abrasive tools by ANDRE ABRASIVE ARTICLES are safe.

ANDRE gradually improves its technological process to offer abrasive tools with increasingly better usability and a high safety factor in accordance with the applicable standards. Membership in organizations of leading abrasive tool manufacturers and regular certification fully confirm that.
