TYPE 3610
DISC WHEELS WITH THREADED INSERTS AND INCISIONS

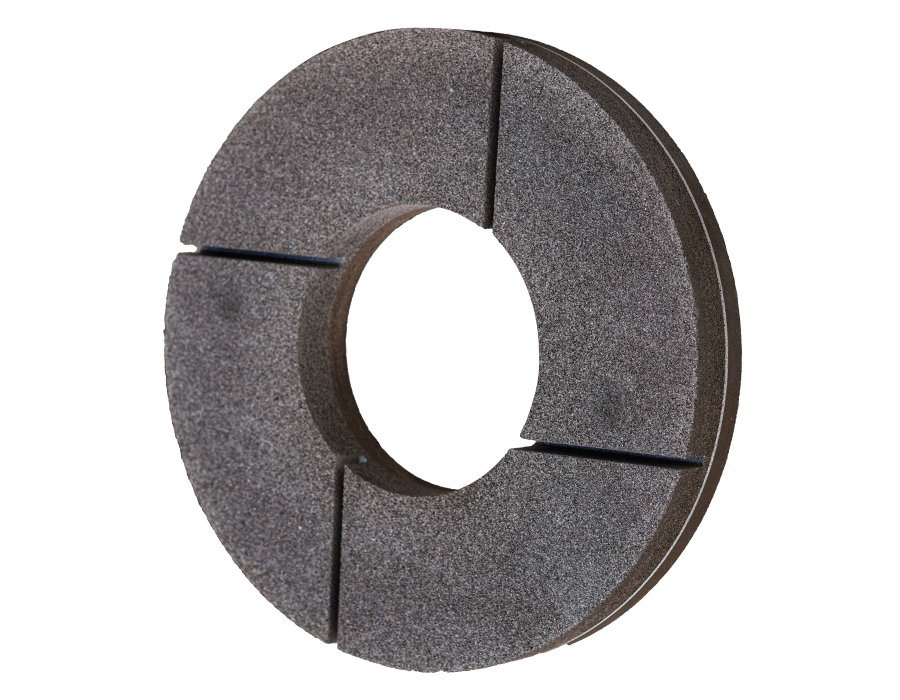

TYPE 3610 wheels are a group of wheels designed for working with face surface, individually or in pairs. The grinding wheels have threaded inserts on their non-working face for clamping on the grinder.
ANDRE TYPE 3610 resin bonded grinding wheels are mainly manufactured on the basis of brown aluminium oxide (95A), white aluminium oxide (99A) and black silicon carbide (98C). For special applications, ANDRE also offers other combinations of abrasive grains with excellent performance characteristics.
H < 0,67D
3610 - D × T × H - no. pic.
Examples of labeling:
3610 - 450x60x203-95A24N6B569KZ-35-PP36/302
3610 - 450x60x203-95A24N6B569KZ-35-PP36/302
Download

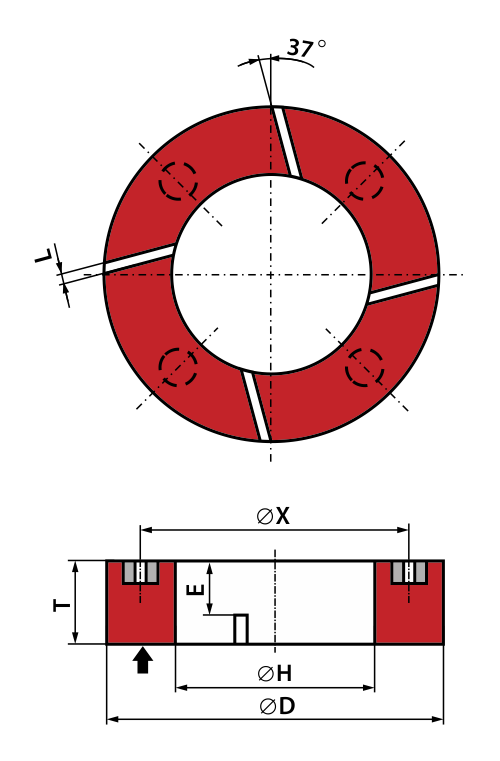

Parameters of the offered grinding wheels of the presented type
| TYPE 3610 | |||||||||
| Dimensions [mm] | Number of incisions n | Angle scale and number of thread inserts | No. pic. | ||||||
| D | T | H | E | L | X | Height of threaded insert | |||
| 250 | 50 | 160 | 30 | 10 | 205 | 12 | 4 | 90° 4 x M10 | PP/36/235 |
| 450 | 60 | 203 | 30 | 7 | 270
373 |
16 | 4 | 72° 5 x M10
36° 10 x M10 |
PP/36/302 |
*) Other parameters (dimensions, profiles) available according to individual arrangements.
The presented abrasive tools ANDRE ABRASIVE ARTICLES have been manufactured based on knowledge and long-term experience of cooperation with customers.
Since the beginning of its activity, ANDRE company has been focusing on high quality of its products. At ANDRE, every effort is made to ensure that products meet customers' individual needs and satisfy their highest expectations even in the most difficult grinding operations.
Abrasive tools by ANDRE ABRASIVE ARTICLES are safe.
ANDRE gradually improves its technological process to offer abrasive tools with increasingly better usability and a high safety factor in accordance with the applicable standards. Membership in organizations of leading abrasive tool manufacturers and regular certification fully confirm that.
