TYPE VBA-8

DIAMOND AND BORON GRINDING WHEELS

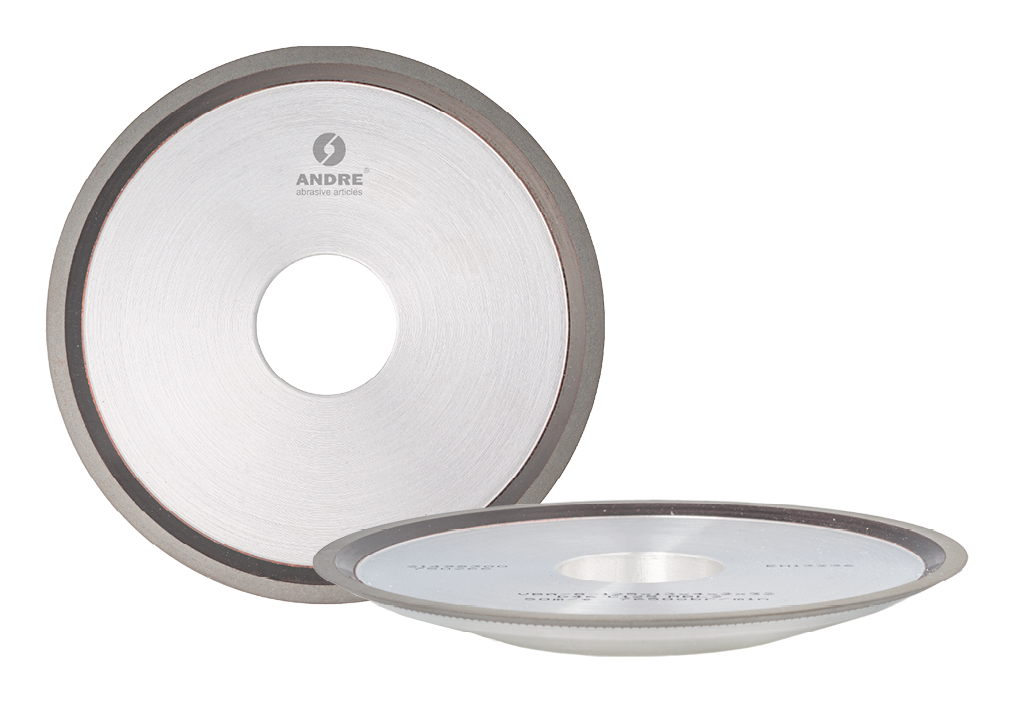

Super-hard TYPE VBA-8 grinding wheels with resin bond are used for sharpening the tooth rake face of circular saws with carbide inserts. Capable to use on stationary CNC and conventional grinding machines.

ANDRE TYPE VBA-8 super-hard resin bonded grinding wheels are produced on the basis of diamond or borazon grains, depending on the nature of the operation and the type of material to be machined.
For specialized applications, ANDRE also offers customized solutions of super-hard abrasive tools with excellent wear characteristics.

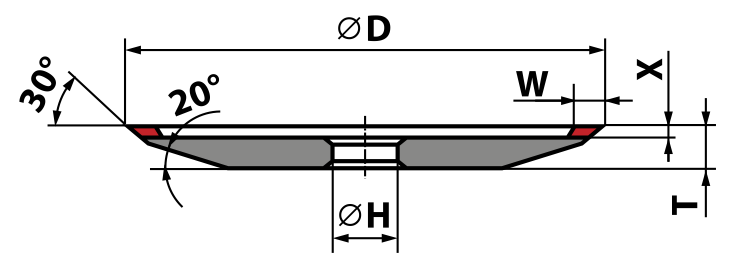

VBA-8 - D x T x W x X x H

Examples of labeling:
VBA-8-150x13x4x2x32-B126V240NBN6

Download

DIMENSION TABLE
PRODUCT EXAMPLES

Parameters of the offered superhard wheels of the presented type

TYPE VBA-8
Dimensions [mm]
D	T	W	X
125	13	4	2
150	13	4	2
175	13	4	2
200	13	4	2

*) Hole diameter H available according to individual arrangements.
**) Other parameters available according to individual arrangements.

Examples of manufactured superhard wheels of the presented type

D
Code	Dimensions [mm]	Characteristics
750266	125 × 13 × 4 × 2 × 32	D46C125QBL2
750768	125 × 13 × 4 × 2 × 32	D76C125TBL5
